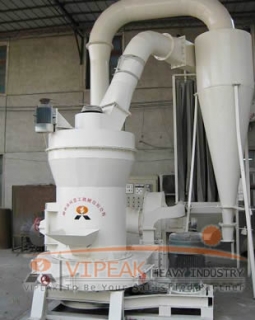

High Pressure Micro-powder Grinder/Vipeak Grinder Machine/Best Grinding Mill

High Pressure Micro-powder Grinder fromVipeak Heavy Industry is a super thin powder grinder machine developed on the basis of our many years of experience and advanced grinding technologies. It produces super thin power, and is applicable to all kinds of nonflammable and non-explosive materials with Mohs hardness below 9.Its finer finished grain, high efficiency and no pollution.And it also the wearing parts in the grinding chamber are wear-resistant, with a long replacement cycle. Its the ideally suitable grinder machine for grinding calcite, limestone, calcite, dolomite, kaolin, bentonite, talc, illite, pyrophillite, barite, meerschaum, fluorite, potash ore and other more than 200 kinds of materials that Mohs hardness is below 6, non-explosive, non-flammable minerals.
Working Principle of High Pressure Micro-powder Grinder:
The main motor drives main axle and each layer of dial to rotate through reducer, and the rotating dial makes dozens of rollers roll and rotate in the ring by pintles. Big materials are reduced to smaller particles by crusher. Then they are sent to stock bin by an elevator. The electromagnetic vibrating feeder sends the materials evenly to the middle of the upper dial. Under the function of eccentricity, the materials fall into the grinding ring to be pressed, crushed and milled into small pieces by rollers. After being ground in the first layer, the materials fall into the second and the third layer for milling. High-pressure centrifugal blower sucks the outside air into the machine and brings the third layer-milled coarse power into the classifier. The rotating turbine in the classifier makes the coarse materials fall back for regrinding. The fine particles come into the cyclone collector with the air flow and are discharged by the discharge valve on the bottom of the collector. After being purified, the air flow with little dust is discharged through blower and muffler.From: http://www.raymondgrindingmill.org/
we produce grinding machine,such as High Pressure Micro-powder Grinder, Raymond Mill .And Raymond Mill is our mainly grinding machine. http://www.grinderpro.com/Circular_Vibrating_Screen.html
If you want to get more info,you can contact us by the ways below:
Conpany Name:ZhengZhou Vipeak Crusher Heavy Industry Machinery
Address: No.43,Tongbai Road, Zhengzhou, Henan, China
Tel:86-371-67770550
Fax:86-371-67431834
Email: yinmengxue90@gmail.com

Views: 700
