GM Tech2 GM Diagnostic Scanner

http://www.doucciauto.com/gm-tech2-gm-diagnostic-scanner-p-62.html
Contact Info:
Web: www.doucciauto.com
Email: sales@doucciauto.com
MSN: doucci@hotmail.com
Description:

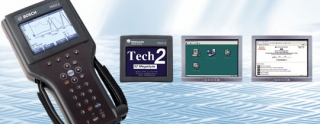

The Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2010.

Specification:

1.Features

1)Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
2)Support for on-board diagnostics on all GM systems 1992 thru current year.
3)Removable hardware modules provide insurance against scan tool obsolescence.
4)Large, easy-to-read backlit screen.
5)RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6)Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7)Ability to view the status of vehicle diagnostic tests as they run.
8)Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.
9)Vetronix Tech 2 Specifications
10)Dimensions: 12
11)Microprocessor: 32 bit,16 MHz
12)Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
13)Communications: Integral RS232 communication port.
14)Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.

2.The following GM vehicles utilize the CAN interface

05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)

3.Dimension:55CM*50CM*19CM

Package list (All ORIGINAL and NEW):

Tech-2 Flash Tester
32 MB PCMCIA Card with GM OE Applications
CAN diagnostic interface module(CANdi) and instruction sheet download (199.2 kb)
RS232 cable and user`s manual
RS232-DB9 adapter
DLC Cable, DLC Loopback Adapter
12V Cigarette Lighter Power Cable
SAE 16/19 Adapter
NAO 12/19 Adapter
Battery Power Cable
Storage Case
TIS 2000 CD+USB KEY
