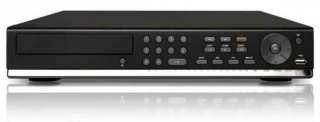

HD SDI CCTV 4ch DVR FS-SDI504-DVR
Tampa added on 20-04-2012, Classified number: 23434
4ch HD SDI DVR, H.264 DVR, Standard safe DVR , CCTV DVR
Contact person: May Hwang Email: finseen2(at)gmail(dot)com
HD SDI CCTV 4ch DVR FS-SDI504-DVR
1) 1080p (1920x1080) Resolution Recording
2) H.264 Compression provides smaller file size & lower bandwidth
3) HDMI(Max. 1920x1080),VGA(Max. 1920x1080),SDI(1920x1080 60i) and Real Time Live View
4) QUADPLEX: Allows simultaneous live view or playback while still continuing to record, network transfer, and back up data.
5) 4ch Audio Input,1ch Audio Output
6) 4ch Alarm Input, 1ch Alarm Output.
7) 1 RS-485 for Camera Control.
8) 2 USB 2.0 port for backup of recorded files,firmware upgrade,configuration export/import,or USB mouse.
9) Individual channel operation such as FPS, quality, recording mode, & detection zone
10) Network hardware supports 10/100/1000 Mbps.
11) Various network access: Network client SW,Web-viewer,Smartphone APP,and Free 256 Channel CMS.
12) Remote access via PC, MAC®,or smart phones such as the iPhone®, Android™, and BlackBerry™.
13) Recording priority programmable per channel for schedule, alarm, motion, or continuous.
14) Free CMS software included for remote playback, local recording, backup, and remote setting.
15) Free DDNS server for use with Dynamic IP addresses.
16) Dual-stream support for simultaneous access from a PC, MAC, and/or a cell phone at low bandwidth.
17) E-mail event notification, along with image file attachment.
18) NTP (Network Time Protocol).
19) Watermark Verification.
20) Synchronized audio for court evidence.
21) Time Stamp over backup data for court evidence.
22) Easy and various data backup via DVD, USB flash drive, USB external HDD, and network
23) HDD S.M.A.R.T status check and alert via e-mail or internal beep.
24) USB Mouse, IR Remote Control.
25) 2 internal SATA port HDD storage up to 8TB.
Model FS-SDI504-DVR
Video input 4CH HD-SDI (720p25/30/50/60, 1080p25/30, 1080i50/60)
Video output HDMI1080p,VGA1080p,SDI (1920x1080 60i)
Audio input 4ch
Audio output 1ch and HDMI
Video/
Audio compression H.264/G.711
Alarm 4ch input /1ch output, NC/NO Selectable
Multi Operation Quadplex (Playback, Recording, Backup, Network)
Record quality grade 5 levels
Record mode Continuous / Schedule / Motion/ Sensor/ Manual
Pre Recording Up to 20minutes
Posting Recording Up to 20minutes
Record resolution 1920x1080 60fps
Playback H.264 1280x720 120fps
Search Mode Timeline, Event, Archive, Log, Specific Time
Capacity of 1 HDD 2TB
Internal HDD Number 4EA (4EA (2EA w/DVDRW)
USB Port 2 (Front 1, Rear 1)
S.M.A.R.T HDD Error Check and Reporting using by Alarm and e-Mail
Operation IR Remote control, Front Button, Mouse, Keyboard controller
Console & POS 1 RS-232C
PTZ & Keyboard control 1 RS-485
Dynamic DNS Free DDNS
Dual Network Streaming 1280x720 120fps / 640x360 100fps
Web viewer (1:1) Live Live, Search, Backup, PTZF, Remote Setup, Remote Upgrade
Client Software (1:1) Live Live, Search, Backup, PTZF, Remote Setup, Remote Upgrade
CMS (1:N) Live, Search, Backup, PTZF, Remote Setup, Remote Upgrade
Watermarking Yes
DLS (Day Light Saving) Yes
NTP(Network Time Protocol) Yes
Internal Beep By Video Loss, HDD error
Multi-Language Yes (more than 20 languages)
3G Mobile iPhone / Android / Blackberry
Power AC 100~120V/200~240V, 50/60Hz,280W
Operation Temperature 5°C - 40°C, During storage: -10°C - +50°C
Net Weight (Gross Weight) 6.4 kg (9.1 kg)
Dimension 434mm x 432mm x100mm
