High Definition Hybrid Network DVR FS-H2012
Shenzhen,China added on 23-08-2011, Classified number: 4093
HDVR,hybrid NVR Supplier, Hybrid DVR,NVR,IP camera,Standalone DVR,Video server,Linux PC DVR,Intelligent Speed Dome Camera,Alarm I/O Device, Mobile DVR,POE Device, Megapixel IP camera, standalone NVR, mobile NVR, linux NVR, ip NVR, video NVR, embedded NVR, High Definition Hybrid Network DVR, H.264 DVR Surveillance, Finseen Group Company Limited
Contact person: Sally Shun Email: sally31848(at)gmail(dot)com

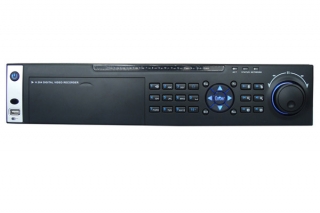

High Definition Hybrid Network DVR FS-H2012
1) Embedded Linux OS
2) Standard H.264 compression algorithm
3) 12 Ch. hybrid video input, D1 real time recording
4) 8 Ch. Alarm input and 2 Ch. Alarm output
5) Support HDMI, VGA, CVBS, SPOT output
6) Support 16 Ch. Video Loop-out
7) Support mobile phone viewer (Windows Mobile/Symbian/iPhone/ Android/BlackBerry)
8) Embedded Web Server easy for remote monitoring.
9) 8 SATA interfaces, support up to 16 TB HDD
10) Support multiple DDNS (Oray, 3322, DynDNS)
11) PTZ control by mouse and Controller
12) 2 USB interfaces, support mouse and external storage device
13) User Friendly GUI, front panel, remote control and mouse
14) Support 4 Ch. 720P/ 2 Ch. 1080P HD IPC
15) Two-way audio (Support BNC interface and 3.5mm interface)
Model FS-H2012
Main Processor High Performance Embedded Microprocessor
Operation System Embedded Linux OS
Signal System PAL/NTSC
System Resource Recording, Playback, Remote Access
Operation Interface Mouse, Front Panel, Remote Control
Video Split 1 / 4 / 8 / 9 Split Display
Video Resolution D1 (Digital channels support 1080P or 720P)
Video Playback Resolution 1080P / 720P / D1 / HD1 / CIF / QCIF
Video Compression H.264 CBR / VBR
Image Control 6 Levels
Recording Speed PAL: 25fps/channel, NTSC: 30fps/channel
Motion Detection Configurable detection areas (22 × 18 blocks) and Sensitivity
Audio Compression G.711
Recording Priority Manual > Alarm > Motion Detection > Schedule
Local Playback 8 channel synchronous playback
Playback Search Date, Time, Event, Channel
Video Storage Local HDD / Network / USB / DVD-RW
Backup Mode Network / USB / SATA
Video Input 8 channel BNC
IPC Input 4 channel 720P / 2 channel 1080P
Video Output 1 channel BNC, 1 channel VGA (Up to 1280×1024/60Hz)
HDMI Output 1 channel (Up to 1920×1080)
Video Loop-out 8 channel BNC (D-SUB)
SPOT Output 1 channel BNC
Audio Input 8 channel BNC
Two-way audio Input 2 channel (1 channel BNC, 1 channel Phone Jack)
Audio Output 1 channel BNC
Alarm Input 8 channel
Alarm Output 2 channel relay output (30V DC 2A , 125V AC 1A )
Ethernet Interface RJ45 100M / 1000M Base-TX
PTZ Interface 2 x RS485
USB Interface 2 x USB2.0
HDD/SATA Interface 8 x SATA
Network Keyboard Support
Power Supply AC100V ～ 240V 50Hz/60Hz
Power Consumption <20W (HDD not included)
Working Temperature -10℃~ + 55℃
Working Humidity 10% ～ 90% RH
Atmosphere Pressure 86kpa ～ 106kpa
Enclosure 2U
Dimensions 447(L) x 440(W) x 88(H)mm
Weight 7.43Kg (HDD not included)
Mounting Rack Mount, Desktop Mount
