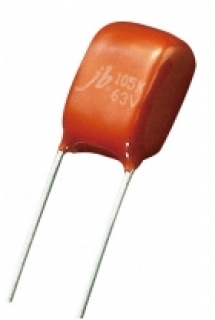

JFE - Mini Metallized Polyester Film Capacitor
Dongguan added on 15-02-2013, Classified number: 63286
This series have price advantage and the small size can be compared favourably with the stacked Metallized Polyester Capacitor
Features:
Miniature size, non-inductive, epoxy dip coated.
The small size can be compared favourably with the stacked film capacitor.
Epoxy resin powder coating provides the identical outer appearance.
Low dissipation factor.
Excellent self-healing property and reliability.
Operating Temperature -40°C~ +85°C
Rated Voltage 50/63V, 100V, 160V, 250V, 400V.DC
Capacitance Range 0.01 ~ 2.2μF
Capacitance Tolerance ±5%, ±10%, ±20%
Insulation Resistance C≤0.33μF ≥3750MΩ ; C0.33μF ≥1250S 20°C, 1min
Dissipation Factor ≤1.0% 20°C, 1KHz
